Wave Gen Xpress – Digital Pattern Generator

END OF LIFE NOTICE – Storm, Xpress & GP241xx series

As of April, 23rd, 2018, Byte Paradigm announces the end-of-life of all models of SPI Storm, LOG Storm, Xpress and GP-241xx series.

The sales of the devices mentioned above will continue within the limits of our stocks. If the stocks are not sufficient to fulfill orders, minimum order quantities apply to all new productions.

  • 100 MHz operation
  • Up to 32 MB memory buffer
  • 16 bit digital pattern
  • Optional external clocking
  • Output voltage 1.25V to 3.3V
  • USB-powered
  • Win32/64 GUI
  • C/C++ API included for free
Read more

Price starts at: 450 EUR

Wave Gen Xpress digital pattern generator

What is a digital pattern generator?

A digital pattern generator is an essential stimulus source for almost every type of digital device: digital and mixed-signal ASIC, FPGA, microprocessors and microcontrollers. The digital pattern generator can be used early in the design cycle to substitute for system components that are not yet available.

Because nowadays circuits use digital interfaces that may run at more than a few 10th of megahertz, the old way to do it with microcontrollers coupled with a GPIO is not practicable any more. By substituting for missing pieces and offering maximal flexibility when generating digital logic signals, digital pattern generators speed up new product’s time-to-market.

The digital pattern generator is an effective solution just about anywhere that complex digital bit streams are needed to stimulate a device under test (DUT).

Read more

How does it work?

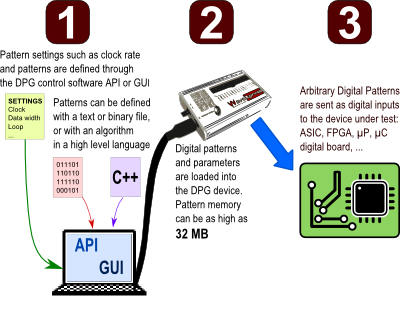

How does a DPG work?
